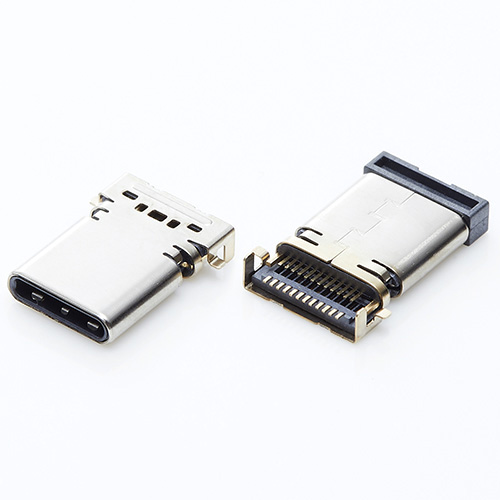

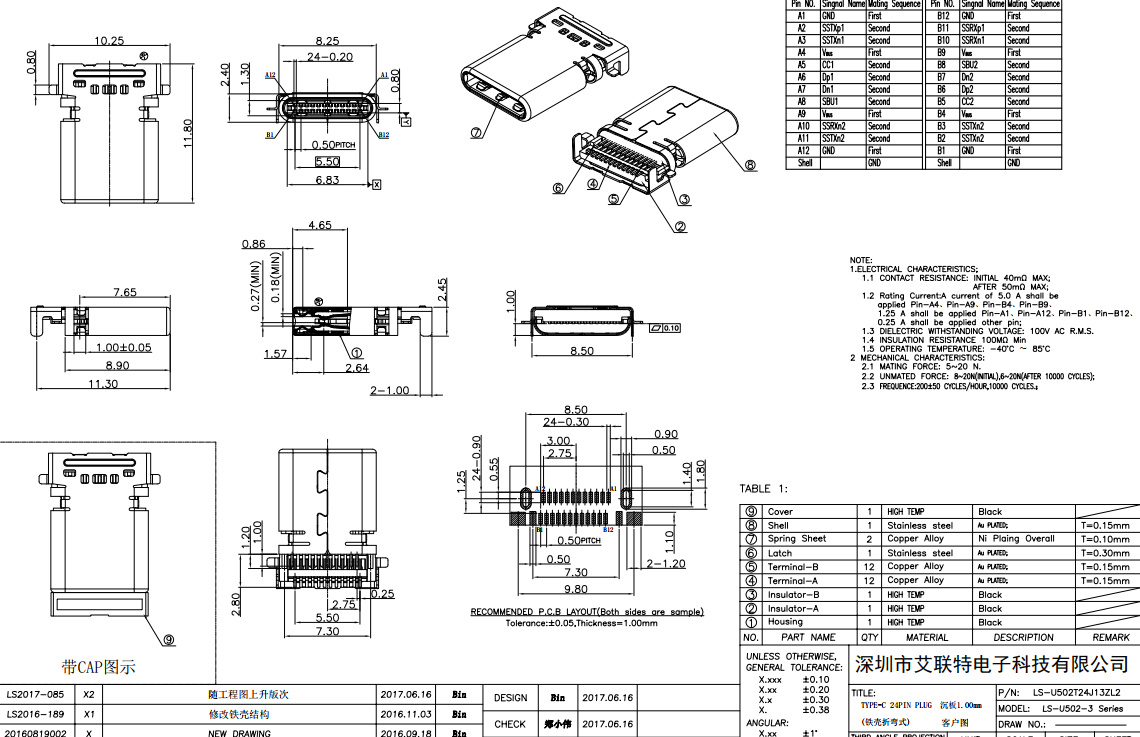

TYPE C 24P公头 沉板前贴后插 针双排贴片 带塞

Electrical

MAXIMUM VOLTAGE: 5A FOR VBUS:

1.25A FOR GND PIN，0.25A FOR OTHER.

MAXIMUM CURRENT DC: 20V MAX

DIELECTRIC STRENGTH: 250 VA C (1mn)

CONTACT RESISTANCE: ≤ 40 mΩ

INSULATION RESISTANCE: ≥ 100 MΩ

MECHANICAL

INSERTION：5-20N

EXTRACTION：8-20N AFTER TEST

DURABILITY：10,000 CYCLES



Environmental

OPERATING TEMPERATURE: -25?C to 85?C
